Commercial roofing systems play a crucial role in protecting businesses and industrial facilities from the elements. These specialized structures come in various types, each designed to meet specific needs and environmental conditions.
Choosing the right commercial roofing system can significantly impact a building’s energy efficiency, durability, and maintenance costs. Different materials and installation methods offer unique advantages, allowing property owners to select options that best suit their budget, climate, and long-term goals.
1. Modified Bitumen
Modified bitumen roofing is a popular choice for commercial buildings. This system consists of reinforced roof fabrics with asphalt that’s been modified with polymers. The added polymers enhance the material’s flexibility and durability.
Modified bitumen roofs are typically installed in multiple layers. The base layer provides waterproofing, while the top layer offers UV protection and weather resistance. This multi-layer approach contributes to the system’s longevity.
There are two main types of modified bitumen: SBS (styrene-butadiene-styrene) and APP (atactic polypropylene). SBS offers better flexibility in cold temperatures, while APP performs well in hot climates.
Installation methods for modified bitumen roofs vary. They can be torch-applied, cold-applied with adhesives, or self-adhered. Each method has its own advantages depending on the specific project requirements.
Modified bitumen roofs are known for their strong resistance to foot traffic and punctures. This makes them suitable for buildings with frequent roof access or equipment installations. They also offer good tensile strength and dimensional stability.
2. Single-Ply Membrane (TPO)
Thermoplastic Polyolefin (TPO) is a popular single-ply roofing membrane for commercial buildings. It consists of a synthetic rubber compound that provides excellent durability and weather resistance.
TPO roofing systems are known for their energy efficiency. The white surface reflects sunlight, reducing heat absorption and lowering cooling costs for buildings.
Installation of TPO membranes is typically fast and straightforward. The sheets are mechanically fastened or adhered to the roof deck, with seams heat-welded for a watertight seal.
TPO roofs offer good resistance to UV rays, chemicals, and punctures. They can withstand extreme temperatures and maintain flexibility in various climates.
These roofing systems are available in different thicknesses, usually ranging from 45 to 80 mils. Thicker membranes generally provide increased durability and longevity.
Maintenance requirements for TPO roofs are relatively low. Regular inspections and cleaning can help extend their lifespan, which typically ranges from 15 to 30 years.
TPO roofing is a cost-effective option for many commercial applications. It balances performance and affordability, making it an attractive choice for building owners and managers.
3. Single-Ply Membrane (PVC)
PVC (Polyvinyl Chloride) is a popular single-ply roofing membrane used in commercial buildings. This synthetic plastic material offers excellent durability and resistance to chemicals, fire, and punctures.
PVC roofing membranes are typically reinforced with polyester or fiberglass for added strength. They come in various thicknesses, usually ranging from 45 to 90 mils.
Installation of PVC roofing systems can be done through mechanical fastening, adhesive bonding, or heat welding. Heat welding creates strong, watertight seams that contribute to the roof’s longevity.
One key advantage of PVC roofing is its energy efficiency. The white or light-colored surface reflects sunlight, helping to reduce cooling costs in buildings.
PVC roofs are known for their low maintenance requirements and long lifespan, often lasting 20 to 30 years with proper care. They resist mold, algae, and bacterial growth, making them suitable for various climates.
These roofing systems are highly flexible, allowing them to accommodate building movement and settle without cracking or splitting. PVC membranes also remain pliable in cold temperatures, reducing the risk of winter damage.
4. Single-Ply Membrane (EPDM)
Single-Ply Membrane (EPDM) is a popular commercial roofing system known for its durability and versatility. EPDM stands for Ethylene Propylene Diene Monomer, a synthetic rubber material.
This roofing system consists of a single layer of rubber membrane, typically black in color. It is available in various thicknesses, with 45 and 60 mil being the most common for commercial applications.
EPDM roofs can be installed using several methods. These include fully adhered, mechanically attached, or ballasted systems. Each method offers different advantages depending on the building’s structure and local climate conditions.
One of the key benefits of EPDM roofing is its excellent weather resistance. It performs well in extreme temperatures, from intense heat to freezing cold. The material also has good resistance to UV radiation and ozone.
EPDM roofs are lightweight, making them suitable for a wide range of building types. They require minimal maintenance and can last up to 30 years with proper care. The material is also recyclable, contributing to its eco-friendly appeal.
Installation of EPDM roofing is relatively quick and straightforward. This can lead to reduced labor costs and shorter project timelines. The system’s flexibility allows it to accommodate various roof shapes and sizes.
5. Built-Up Roofing (BUR)
Built-Up Roofing (BUR) is a time-tested commercial roofing system that has been used for over a century. It consists of multiple layers of bitumen and reinforcing fabric, creating a durable and waterproof membrane.
BUR systems typically use asphalt or coal tar as the bitumen material. These are alternated with layers of reinforcing fabric, often referred to as roofing felt or ply sheets. The number of layers can vary, but most BUR systems have three to five plies.
The final layer of a BUR system is usually a layer of gravel or mineral granules. This top layer provides protection from UV rays and adds fire resistance to the roof. It also helps to weigh down the roofing materials and enhance the overall durability of the system.
BUR roofs are known for their excellent waterproofing properties and long lifespan. They can last 20 to 30 years with proper maintenance. These roofs are particularly suitable for buildings with flat or low-slope roofs.
While BUR systems offer many advantages, they are heavier than some other roofing options. This may require additional structural support in some buildings. Installation of BUR roofs can also be time-consuming and may produce strong odors during the process.

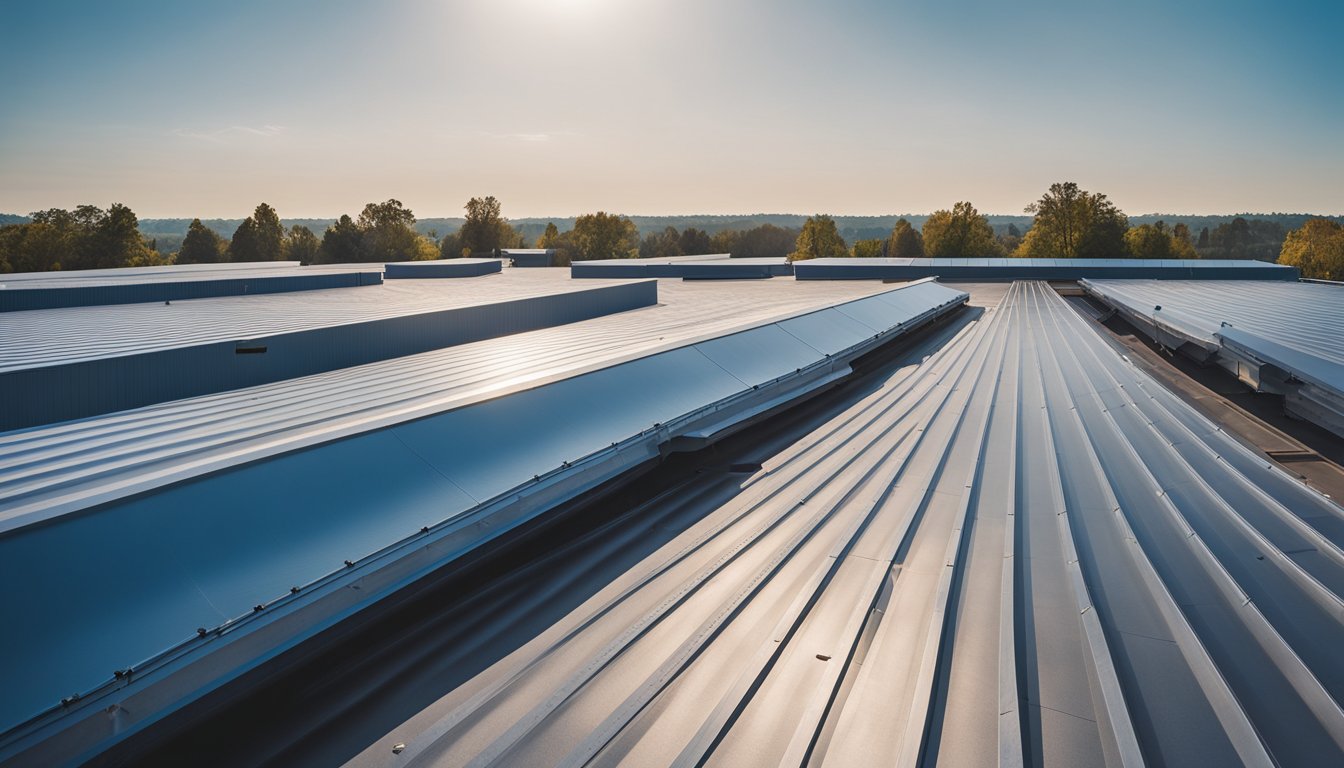

6. Metal Roofing
Metal roofing systems are gaining popularity in commercial buildings due to their durability and longevity. These roofs can last 40-70 years with proper maintenance, outlasting many other roofing materials.
Common metals used include steel, aluminum, copper, and zinc. Each offers unique benefits in terms of cost, weight, and aesthetics. Steel is often chosen for its strength and affordability.
Metal roofs are highly resistant to fire, wind, and impact damage. They reflect solar heat, potentially reducing cooling costs in warm climates. Many metal roofing products contain recycled content and are fully recyclable at the end of their lifespan.
Installation methods vary, with standing seam being a popular choice for commercial buildings. This system uses concealed fasteners, enhancing weather resistance and allowing for thermal movement.
While initial costs can be higher than some alternatives, metal roofs often prove cost-effective in the long run due to their low maintenance requirements and energy efficiency. They can be installed over existing roofs in some cases, potentially reducing installation time and disposal costs.
7. Green Roofing
Green roofing systems incorporate vegetation and growing mediums on top of waterproofing membranes. These eco-friendly roofs offer numerous benefits for commercial buildings and urban environments.
Green roofs help reduce energy costs by providing natural insulation. They also improve air quality by absorbing pollutants and producing oxygen.
There are two main types of green roofs: extensive and intensive. Extensive green roofs feature a thin layer of soil and low-maintenance plants like sedums. Intensive green roofs have deeper soil and can support a wider variety of plants, including shrubs and small trees.
Green roofs can extend the lifespan of the underlying roof membrane by protecting it from UV radiation and temperature fluctuations. They also help manage stormwater runoff by absorbing and filtering rainwater.
Installing a green roof requires careful planning and structural considerations. The building must be able to support the additional weight of soil, plants, and water retention.
Maintenance is essential for green roofs. Regular irrigation, weeding, and plant care are necessary to keep the roof healthy and functioning properly.
8. Spray Polyurethane Foam (SPF)
Spray Polyurethane Foam (SPF) is a versatile commercial roofing system that offers excellent insulation and waterproofing properties. It consists of a liquid mixture that expands into foam when sprayed onto a roof surface.
SPF creates a seamless, monolithic layer that adheres tightly to the existing roof structure. This unique characteristic allows it to conform to irregular shapes and seal potential leak points effectively.
The foam’s closed-cell structure provides superior insulation, helping to reduce energy costs for buildings. It also adds structural strength to the roof, enhancing its overall durability.
SPF roofs are lightweight yet strong, making them suitable for various building types. They can be applied over existing roof systems, potentially eliminating the need for tear-offs and reducing installation time.
Maintenance of SPF roofs typically involves periodic recoating to protect the foam from UV radiation and weather exposure. When properly maintained, these roofs can last for decades.
SPF roofing systems are particularly beneficial in areas prone to high winds or hail, as they resist damage from these elements well. They also perform effectively in both hot and cold climates due to their insulation properties.
9. Shingle Roofing
Shingle roofing is a popular choice for commercial buildings with sloped roofs. This system utilizes individual shingles overlapped to create a water-resistant barrier. Shingles are typically made from asphalt, wood, slate, or composite materials.
Asphalt shingles are the most common type used in commercial applications. They offer durability, affordability, and a wide range of color options. These shingles can last 20-30 years with proper maintenance.
Wood shingles provide a natural, rustic appearance and are often chosen for their aesthetic appeal. They require more maintenance than asphalt shingles and have a lifespan of 15-25 years.
Slate shingles are known for their longevity and elegant appearance. They can last up to 100 years but are more expensive and require specialized installation.
Composite shingles mimic the look of other materials while offering improved durability and fire resistance. They are lightweight and can last 30-50 years.
Shingle roofing systems are relatively easy to install and repair. Individual shingles can be replaced if damaged, making maintenance more manageable. This roofing type is suitable for buildings in various climates and can withstand moderate wind and rain.
10. Tile Roofing
Tile roofing is a popular choice for commercial buildings, offering durability and aesthetic appeal. This roofing system utilizes individual tiles made from materials such as clay, concrete, or slate.
Clay tiles are known for their longevity and classic appearance. They can withstand harsh weather conditions and are resistant to fire, making them suitable for various climates.
Concrete tiles provide a cost-effective alternative to clay. They come in a wide range of colors and styles, allowing for customization to match different architectural designs.
Slate tiles are prized for their natural beauty and exceptional durability. While more expensive, they can last for over a century with proper maintenance.
Tile roofs offer excellent insulation properties, helping to regulate indoor temperatures and reduce energy costs. They also provide good sound insulation, which can be beneficial for commercial spaces.
Installation of tile roofing requires skilled professionals due to the weight and precise placement of individual tiles. Proper underlayment and ventilation are crucial for optimal performance.
Regular maintenance, including periodic inspections and repairs, is necessary to ensure the longevity of a tile roof. This can involve replacing cracked or broken tiles and cleaning debris from valleys and gutters.
Overview of Commercial Roofing Systems
Commercial roofing systems protect buildings from the elements while providing insulation and structural support. They come in various materials and designs to suit different needs and budgets.
Importance of Choosing the Right System
Selecting the appropriate commercial roofing system is crucial for long-term building performance and cost-effectiveness. The right choice depends on factors such as climate, building structure, and local regulations.
A well-chosen system enhances energy efficiency, reducing heating and cooling costs. It also minimizes maintenance requirements and extends the roof’s lifespan, saving money over time.
Proper selection impacts building safety, protecting occupants and assets from weather-related damage. It can also affect property value and insurance premiums.
Environmental considerations play a role in system selection. Some options offer better sustainability and recyclability, aligning with green building practices.
Key Factors to Consider
When selecting a commercial roofing system, several critical elements come into play. These factors significantly impact the longevity, performance, and cost-effectiveness of the chosen roofing solution.
Climate and Environmental Conditions
The local climate plays a crucial role in roofing system selection. In areas with high temperatures, reflective materials like white TPO or PVC can reduce cooling costs. Regions prone to heavy rainfall or snow require roofs with excellent drainage capabilities.
Wind resistance becomes vital in hurricane-prone zones. UV radiation levels influence material choices, with some systems offering superior protection against sun damage.
Environmental factors such as air pollution or nearby vegetation also affect roofing decisions. Industrial areas may need chemical-resistant materials, while tree-lined properties benefit from systems resistant to organic debris.
Building Structure and Design
The building’s structural characteristics greatly influence roofing choices. Roof slope is a key consideration – flat roofs suit different systems than pitched ones. The load-bearing capacity of the structure determines material weight limitations.
Roof accessibility impacts installation and maintenance options. Buildings with rooftop equipment require durable systems that can withstand foot traffic and potential chemical exposure.
The overall architectural design may dictate aesthetic requirements. Some structures benefit from green roofs or solar panel integration, necessitating specific underlying systems.
Maintenance Requirements
Different roofing systems demand varying levels of upkeep. Single-ply membranes often require less maintenance than built-up roofing. Regular inspections and cleaning are essential for all systems to ensure longevity.
Some materials, like metal roofing, may need periodic recoating. Others, such as EPDM, can last decades with minimal intervention. Consider the availability of skilled professionals for specialized maintenance tasks.
The ease of identifying and repairing leaks varies between systems. This factor is crucial for minimizing potential damage to the building’s interior. Budget for long-term maintenance costs when selecting a roofing system.
Frequently Asked Questions
Commercial roofing systems come in various types, each with unique characteristics. These systems differ in materials, installation methods, durability, and energy efficiency.
What are the three main types of commercial roofing systems?
The three main types of commercial roofing systems are:
- Single-ply membranes (TPO, PVC, EPDM)
- Modified bitumen
- Built-up roofing (BUR)
Each type offers distinct advantages and is suitable for different building requirements.
What are the advantages of TPO roofing for commercial buildings?
TPO roofing offers several benefits for commercial buildings:
- Energy efficiency due to its reflective white surface
- Resistance to UV rays, chemicals, and punctures
- Easy installation and maintenance
- Cost-effective compared to other single-ply options
These features make TPO a popular choice for many commercial properties.
What materials are commonly used in commercial flat roofing?
Common materials used in commercial flat roofing include:
- Thermoplastic materials like TPO and PVC
- EPDM (synthetic rubber)
- Modified bitumen
- Gravel and asphalt for built-up roofing
Each material has specific properties that suit different building needs and climates.
How do different commercial roofing systems compare in terms of longevity and maintenance?
Longevity and maintenance requirements vary among commercial roofing systems:
- Single-ply membranes typically last 20-30 years with minimal maintenance.
- Modified bitumen roofs can last 20-25 years and require moderate maintenance.
- Built-up roofing systems often last 15-20 years but need more frequent maintenance.
Regular inspections and prompt repairs extend the lifespan of all roofing types.
What should be considered when choosing a roofing system for a commercial building?
Key factors to consider when selecting a commercial roofing system include:
- Building structure and roof slope
- Local climate and weather patterns
- Budget for installation and long-term maintenance
- Energy efficiency requirements
- Anticipated lifespan of the roof
These considerations help ensure the chosen system meets the building’s specific needs.
How can commercial roofing systems be assessed for energy efficiency?
Energy efficiency of commercial roofing systems can be assessed through:
- Solar reflectance index (SRI) measurements
- Thermal emittance ratings
- R-value of insulation materials
- Cool roof ratings from organizations like ENERGY STAR
Higher ratings in these areas indicate better energy performance and potential cost savings.
